This excellent router is compatible with the Sommerfeld Router Table System!

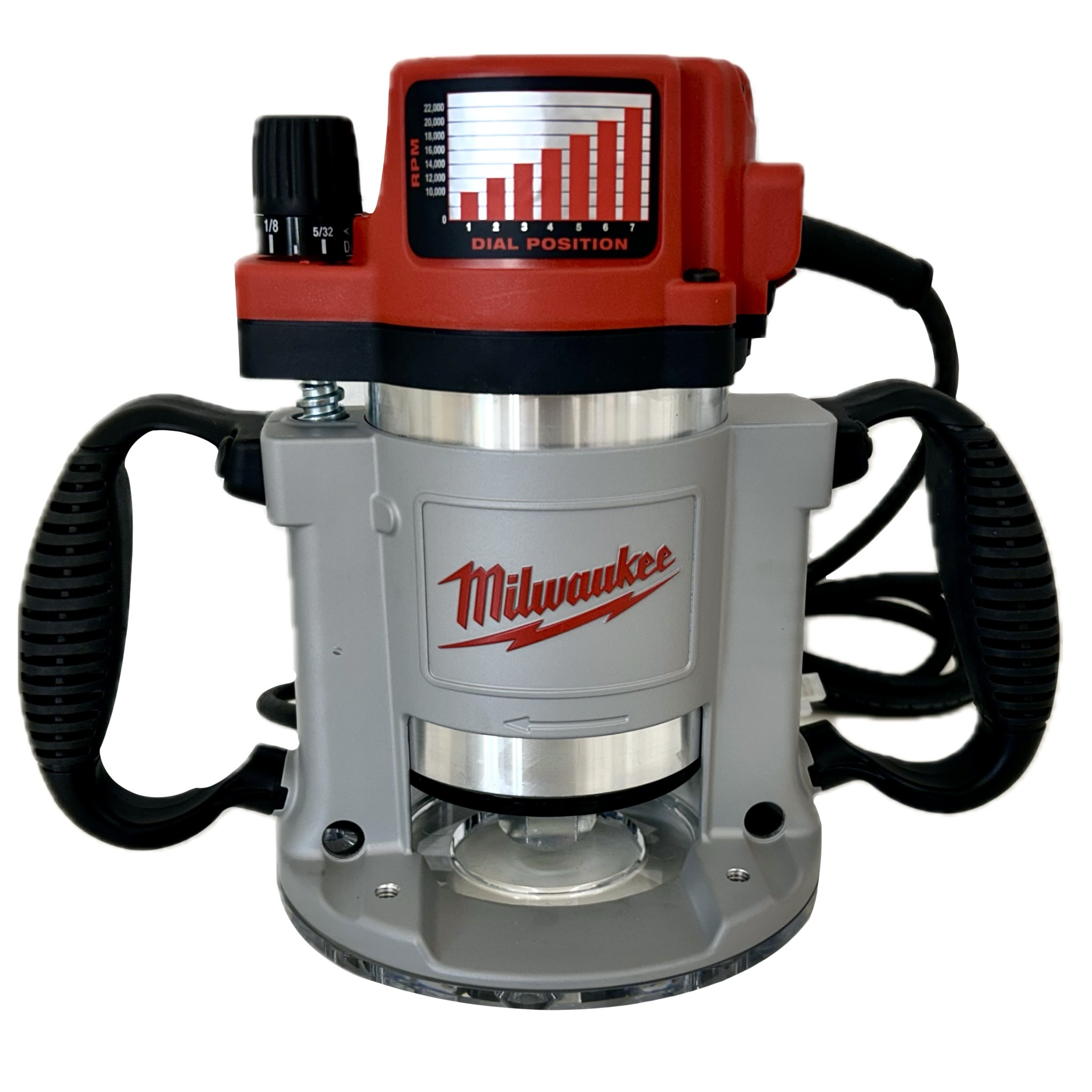

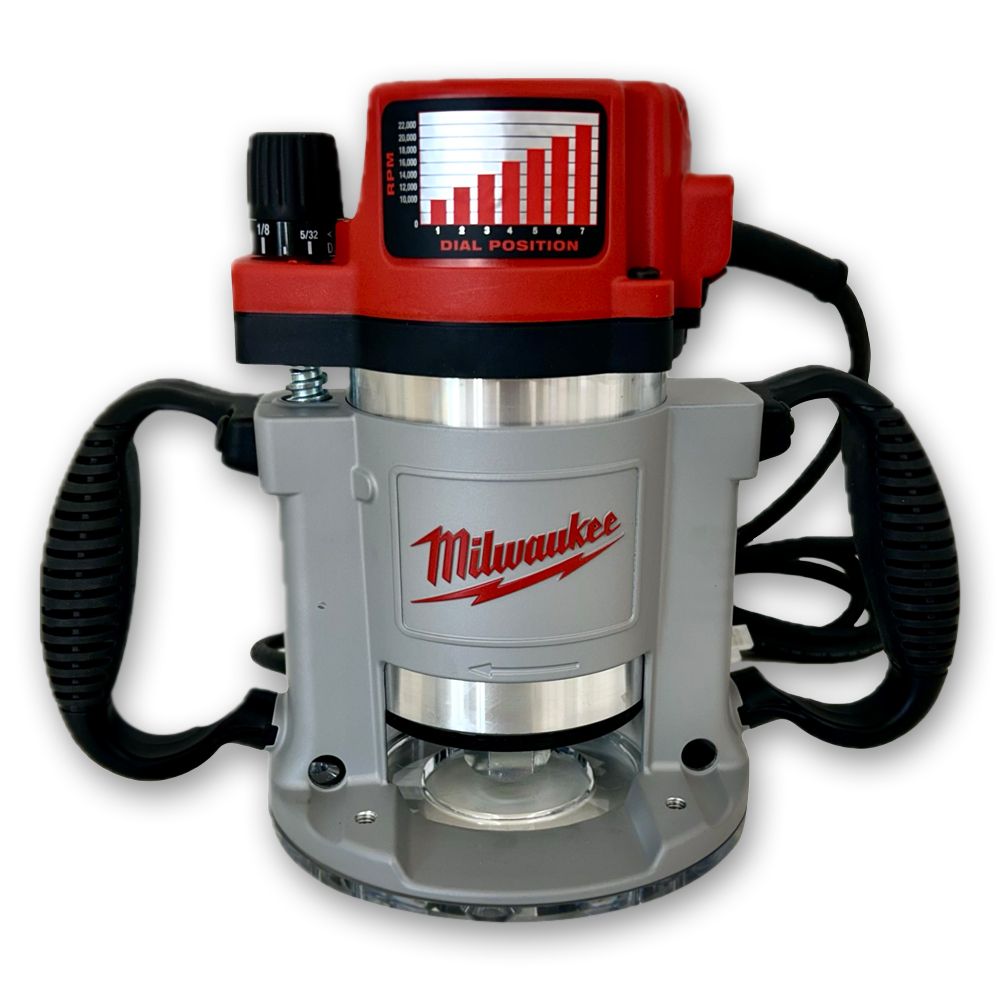

Fully-loaded for production free-hand and router table routing, the router features Milwaukee's exclusive linear height adjustment system with above-the-table access, providing fast, precise coarse adjustments to within 1/8 in. and micro-fine adjustments to within 1/64 in. Unlike helical systems, the motor doesn’t spin as the height is changed, ensuring that the motor controls and power cord remain in a constant, optimal position. The revolutionary system can be accessed from above a router table with the included T-wrench or any 3/8 in. hex socket wrench with extension, eliminating the need for awkward, below the table adjustments or the need for an auxiliary router lift. With an industry standard bolt-hole pattern and router base diameter along with removable handles for insert plate clearance, the 5625-20 readily converts any existing table or production jig set-up. For added protection when table-mounted, the router features an exclusive motor contamination shield that keeps damaging debris out without sacrificing airflow. The router also features a durable, rubber shield for dust-free access to the height adjustment system. For maximum operator control and comfort, the 5625-20 router has impact-resistant, tactile-grip handles set wide apart and angled forward. A heavy-duty, 22 amp switch and speed control dial positions are conveniently located to allow the operator full motor control while keeping both hands on the tool. The router features a durable, machined aluminum motor housing and base along with premium 1/2 in. self-releasing collet, 100% sealed ball bearings and a durable 8 ft. power cord with flexible strain relief for years of accurate, reliable operation.

NOTES For using the Milwaukee Router with the Sommerfeld Router Table system

• The bolt pattern is an exact match to our table - you should be able to attach it with no changes to the table or router.
• You will need custom (longer) bolts to attach them to the Sommerfeld Table (we will include those for you)
• You will need 2x of the 1 1/8" Bent Wrenches (WR001) to change bits
• The collet for the Milwaukee router is deeper than the Triton one that features in Marc Sommerfeld's tutorial videos. You can still use Sommerfeld's rubber grommet for quick-changing our Router Bits but you will need to add a piece of wooden dowel rod to make up the difference in height between the Milwaukee and Triton collets. Once that dowel is in there you should be able to follow Marc's tutorials using the MIlwaukee router.
